CNC Chamfer Programming Guide

Introduction: The Critical Role of Edge Preparation in Precision Machining

In high-precision manufacturing, a component is never truly finished when its bulk dimensions are machined to tolerance. The quality of a component's edges is just as critical. Sharp edges represent safety hazards for assembly personnel, stress concentration regions that promote premature mechanical failure, and electrical arcs in high-voltage assemblies. Traditionally, edge deburring and chamfering were performed manually on the shop floor using hand-held scraper tools, abrasive pads, or rotary air grinders. However, manual deburring is inherently flawed. It introduces significant human variability, elevates labor costs, and is often the primary source of part-to-part inconsistency and dimensional scrap. If a technician slips with a hand tool, they can gouge a finished mating surface, discarding thousands of dollars of precision-machined material in a split second.

The solution is in-cycle CNC chamfering and deburring. By programming the CNC machine to chamfer and deburr edges in the same setup as the primary milling operations, manufacturers achieve micron-level uniformity, eliminate secondary manual operations, and protect structural integrity. Understanding the nuances of chamfer programming is a hallmark of a professional machinist and manufacturing engineer. It requires a solid foundation in geometry, trigonometry, metallurgy, and control system behavior.

This comprehensive guide details the programming of linear and circular chamfers. We will explore the mechanical and metallurgical reasons for chamfering, the right-triangle algebra governing tool depth and diameter calculations, and how to utilize standard Cartesian planes like G17. We will also address tool radius compensation (using G41 Left and G42 Right commands), circular arc toolpaths (G02 and G03), tapped-hole countersinking, and the engineering principles of modern chamfer tooling. Finally, we provide production-ready G-code programs and parametric Fanuc Macro B templates designed to automate complex, multi-pass circular pocket deburring—bridging the calculations of the SHADER7 "Chamfer in G17" and "Circular Chamfer" calculators directly to your machine spindle.

1. Chamfering Theory on the Shop Floor

To write high-quality G-code, a programmer must understand the physics and mechanics of edge deburring and chamfering. A chamfer is not merely a cosmetic feature; it serves vital mechanical and physical functions across a component's lifecycle.

Mechanical and Physical Functions of a Chamfer

First and foremost, chamfers facilitate mechanical assembly. A beveled edge acts as a physical guide (a lead-in) that centers mating parts as they slide together. For instance, when inserting a precision dowel pin into a reamed hole, a lead-in chamfer at the mouth of the hole or on the tip of the pin absorbs minor alignment stack-ups. This prevents binding, galling, and damage during press-fits or sliding assemblies. Similarly, chamfers on threaded holes guide the entry threads of bolts, ensuring proper engagement and preventing cross-threading.

From an aesthetic and ergonomics standpoint, chamfered edges remove razor-sharp metal slivers that can cut workers during handling. They also protect the component's corners from impact damage. A sharp 90-degree corner is mechanically fragile; if hit by another tool or part during transport, it will deform, leaving a raised burr that can prevent proper seating in a fixture. A chamfered edge distributes impact forces, making the component much more robust.

Deburring Mechanics and Edge Finishes

When a cutting tool shears metal, the material undergoes intense plastic deformation. As the tool exits the edge of a workpiece, the metal lacks support, causing it to yield and flow in the direction of the cut. This plastic displacement is the source of the primary machining burr. The severity of the burr depends on the material's ductility and the sharpness of the tool's edge.

• Poisson Burr: Formed when the tool compresses the material sideways, displacing metal outward perpendicular to the feed direction.
• Rollover Burr: Created when the tool exits the cut; the chip is not cleanly sheared off but is bent over the edge.
• Tear Burr: Occurs in highly ductile materials like copper or 300-series stainless steels, where the chip tear is incomplete, leaving a ragged margin.

In-cycle CNC chamfering operates by shearing off these deformed margins with a rotating chamfer mill. However, if the chamfer mill is worn or running at incorrect parameters, it can push a secondary burr onto the adjacent horizontal or vertical surfaces. To prevent this, programmers must optimize the toolpath direction (using climb milling) and feed rates. The final surface roughness (R_a) of the chamfer is controlled by matching the chip load (feed per tooth) with the cutting speed (Surface Feet per Minute, or SFM) to ensure a clean, sheared finish rather than a smeared one.

Stress Distribution and Notch Mitigation

In structural and mechanical design, sharp internal and external corners act as **stress concentrators**. Under an applied mechanical load, the stress lines within a component cluster around sharp changes in geometry. This phenomenon is quantified by the Stress Concentration Factor (K_t), mathematically represented in simple geometries as:

Where h is the depth of the notch or geometric change, and r is the radius of the transition. If r is zero (representing a perfectly sharp corner), the theoretical stress concentration factor approaches infinity. While real-world materials yield locally to relieve this theoretical peak, a sharp edge remains highly susceptible to localized micro-cracking under cyclic fatigue loads. By introducing a chamfer (a transition angle) or a radiused corner (a fillet), the path of internal stress lines is smoothed. This reduces the concentration factor, prevents the initiation of fatigue cracks, and significantly extends the operational lifespan of high-stress components like turbine blades, automotive axles, and aerospace brackets.

Sector Standards: Aerospace, Medical, and Automotive

Different manufacturing sectors enforce strict standards regarding edge preparation. In the aerospace sector (governed by specifications like Boeing's BAC 5300 or Airbus standards), manual deburring is severely restricted because it introduces micro-scratches that act as crack-propagation centers. Aerospace drawings typically specify a minimum and maximum edge break (e.g., 0.005" to 0.015" chamfer or radius) that must be verified under 10x magnification. In the **medical device sector** (governed by FDA regulations and ISO 13485), surgical implants and instruments must be entirely burr-free to prevent foreign body tissue contamination. CNC chamfering must produce flawless finishes, and parts are often inspected using optical comparators or coordinate measuring machines (CMMs) to ensure no loose material can detach in a clinical environment. In the automotive sector, high-volume production requires incredibly fast cycle times. Chamfering cycles are optimized using high-feed, multi-flute solid carbide cutters, where even a fraction of a second saved per part translates to thousands of dollars saved over a production run.

2. Right-Triangle Algebra & Tool Offsets

Calculating the correct tool depth and coordinates for a chamfer requires a mastery of basic right-triangle trigonometry. Without these calculations, a programmer is forced to guess on the shop floor, resulting in scrapped parts and damaged tools.

Trigonometry of the Chamfer

Most standard chamfers are cut at a 45-degree angle. This represents an isosceles right triangle, where the chamfer width (measured along the horizontal plane) is exactly equal to the chamfer depth (measured along the vertical Z-axis). However, non-45-degree chamfers (such as 30-degree or 60-degree bevels) are frequently specified on weld preparations and high-pressure sealing faces. The relationships are defined by standard trigonometric functions:

Where θ_half represents the half-angle of the chamfer cutter (e.g., 45 degrees for a 90-degree included tool, or 30 degrees for a 60-degree included tool). Understanding these ratios is critical when programming with tools that do not cut at a simple 45-degree angle.

Calculating Z-Depth and Tool Tip Offsets

A common mistake among novice CNC programmers is setting the Z-depth of a chamfer tool equal to the desired chamfer width. If you program a 45-degree tool to feed at a depth of Z-0.5mm, the tip of the tool will drag along the edge, cutting nothing while rubbing and generating extreme heat. To cut a clean chamfer, you must offset the tool tip below the bottom edge of the chamfer. This ensures that the active cutting edge—not the stationary tip—contacts the material.

Let's define the parameters for a standard 45-degree chamfer using a 90-degree included chamfer mill:

• w: Desired chamfer width (radial depth).
• O_tip: Tool tip offset (distance the tip extends below the bottom of the chamfer to ensure clean cutting).
• Z_final: The programmed Z-depth of the tool tip relative to the part surface (Z0).

For a standard 45-degree cutter, the formula to find the programmed Z-depth is:

For a non-45-degree cutter, such as a 60-degree included tool (which has a 30-degree half-angle relative to the centerline):

Tool Path Radius Offset Calculation

When programming toolpaths manually (without tool radius compensation active), you must calculate the exact radial offset of the cutter's center line. If you drive the centerline of a tool along the physical edge of a part, the cutter will slice through the material, destroying it. The tool's center line must be offset by the active cutting radius at the contact point.

The **active cutting radius** (R_contact) is a function of the tool tip diameter, the programmed depth of cut, and the tool angle. The formula is:

Once you calculate R_contact, you can program the coordinate toolpath offset manually. However, using Tool Radius Compensation (G41/G42) simplifies this process. The machine's controller automatically handles this calculation, provided you input the correct tool radius value in the control unit's tool offset table.

Effective Cutting Diameter & Speeds

When calculating spindle speeds (RPM), many programmers utilize the cutter's **nominal diameter** (D_nominal). This is a severe mistake. A 12mm chamfer mill might have a 12mm shank, but if the active cutting point is situated near the tip (where the diameter is only 2mm), the actual surface speed (SFM) is drastically lower than calculated. Running at an incorrect speed causes tool rubbing, built-up edge (BUE), and premature tool failure. You must calculate the **Effective Cutting Diameter (D_eff)** at the center point of the chamfer.

For a 45-degree chamfer cutter with a nominal diameter of 12mm and a tip diameter of 1mm, if we are cutting a 1mm chamfer width with a tool tip offset (O_tip) of 2mm, let's calculate the Z-depth and the corresponding effective cutting diameter:

If the programmer had utilized the 12mm nominal diameter for the RPM calculation, the resulting spindle speed would have been 3978 RPM. Running at only 58% of the target speed would double the chip load per tooth, overloading the tool tip and causing immediate chatter marks or tool breakage in harder materials.

3. G17 Plane Coordinate Structures & Tool Radius Compensation

To program toolpaths effectively, a programmer must understand the Cartesian coordinate systems of CNC mills and how tool radius compensation is calculated in the active plane.

Understanding the G17 XY Plane

In standard 3-axis CNC milling machines, the motion is divided into three orthogonal planes. The controller must know which plane is active to calculate tool radius compensation (G41/G42) and arc interpolation (G02/G03):

• G17: Activates the X-Y plane (the standard plane for vertical machining centers).
• G18: Activates the Z-X plane (standard for turning centers and horizontal boring mills).
• G19: Activates the Y-Z plane.

All linear contour chamfering and circular deburring operations on a vertical machining center are programmed in the G17 plane. When G17 is active, all tool offsets and radius compensations are calculated along the horizontal X and Y axes, while the Z-axis remains independent for depth engagement.

Tool Radius Compensation: G41 Left vs. G42 Right

Tool Radius Compensation (TRC) allows programmers to define the toolpath coordinates along the physical edge of the workpiece. Instead of manually calculating offsets, the programmer defines the coordinates of the raw part and commands the machine to offset the cutter by the tool radius stored in the offset register (D-register).

Lead-In and Lead-Out Strategies to Avoid Gouging

Tool compensation must never be activated or deactivated during a vertical plunge or on a cutting path. When the controller reads `G41` or `G42`, it calculates a perpendicular vector from the starting coordinate to the offset coordinate. If the tool is already contacting the material when this calculation occurs, it will gouge the part.

To prevent this, programmers must design careful **lead-in (approach)** and **lead-out (departure)** paths in an open-air safety region. The two most common strategies are:

• Perpendicular Approach (G01 G41 D01 X.. Y..): The tool moves along a path perpendicular to the first cutting element in G01, activating the offset in the open air. This is the strategy utilized by the SHADER7 XY Chamfer Generator, employing a safety offset (#7) to ensure smooth engagement.
• Arc Approach (G02/G03): The tool approaches the cutting edge along a tangential arc. This is the gentlest method for high-aesthetic parts, as it avoids any entry tool marks.

4. Circular Chamfer Toolpaths & Arc Interpolation

Programming circular chamfers around bores or circular bosses requires a deep understanding of arc interpolation. Using circular toolpaths (G02 and G03) maintains a constant tool load and produces a beautiful, concentric finish.

G02 (Clockwise) and G03 (Counter-Clockwise) Command Structures

In standard G-code, circular arcs are executed using G02 or G03. The syntax requires defining the starting point (implicit as the tool's current position), the ending point, and the center of the arc:

Where **I** and **J** represent the incremental distance from the starting point of the arc to the center point of the arc along the X and Y axes, respectively. Alternatively, many controls support the **R-parameter** syntax: `G02 X.. Y.. R..`. While the R syntax is simpler to write, it cannot execute a full 360-degree circle in a single block. For full-circle helical and concentric interpolation (such as circular boss or bore chamfering), the I and J center-vector method is mandatory.

Concentric OD Boss vs. ID Bore Chamfering

When chamfering circular shapes, the toolpath depends on whether you are machining an external feature (OD Boss) or an internal feature (ID Bore):

• ID Bore Chamfering: The tool descends into the center of the hole, approaches the wall radially, and moves counter-clockwise along a climb-milling path (using G03) before returning to the center. This is the exact logic implemented in the SHADER7 Circular Chamfer Macro Generator.
• OD Boss Chamfering: The tool approaches from the outside safety region, engages the profile, and circles clockwise around the boss (using G02) to maintain climb-milling engagement.

Climb vs. Conventional Milling on Arcs

In climb milling (G03 for ID, G02 for OD), the cutter rotates in the same direction as the feed movement. The chip starts at maximum thickness and decreases to zero at the exit. This yields a clean sheared finish, redirects cutting forces down into the fixture, and pushes the machining burr out and down, away from the finished face.

Conversely, conventional milling (G02 for ID, G03 for OD) forces the tool to rub against the material before shearing. This leads to friction, localized heating, rapid tool tip wear, and pushes a thick rollover burr onto the face of the workpiece. Therefore, climb milling is the industry-standard choice for precision CNC chamfering.

5. Countersinks & Tapped Hole Entry Alignment

Tapped holes are among the most common features on precision plates, engine manifolds, and flange couplings. Proper entry chamfering is vital for assembly alignment and thread strength.

Thread Start Chamfering Calculations

When tapping steel or aluminum, the threading tap displaces a minor amount of material upwards at the entry of the hole. If a thread is machined without a lead-in chamfer, this displaced metal forms a raised burr that prevents mating components from seating flush. Furthermore, the first thread will bear the brunt of assembly forces, leading to thread shear.

To prevent this, a chamfer must be cut before tapping. The entry diameter of the chamfer must be slightly larger than the nominal **major diameter** of the thread. As a standard engineering rule of thumb:

For an M8 x 1.25 tapped hole, the target chamfer diameter is: `8.0mm + 0.4mm = 8.4mm`. For a 1/4"-20 UNC thread (major diameter 0.250"), the target chamfer diameter is: `0.250" + 0.020" = 0.270"`.

Flathead Screw Countersinking (82°, 90°, 100°)

Unlike standard bolts, flathead screws are designed to sit flush with or slightly below the surface of the assembly. This requires a dedicated countersink, and the included angle must match the screw style:

• 82-Degree Included Angle: Standard for Unified (Imperial) flathead screws (UNC/UNF).
• 90-Degree Included Angle: Standard for Metric flathead screws (DIN/ISO).
• 100-Degree Included Angle: Common in aerospace and aviation structures, designed for thin sheet metal components to distribute loads without tearing.

Countersink Depth Calculation Formulas

To calculate the required Z-depth for a countersink tool to achieve a specific target diameter, utilize the following trigonometric formula:

Let's run a practical shop-floor calculation for a metric M6 flathead screw using a 90-degree spot drill with a 1.0mm tip diameter. The ISO standard specifies that the maximum head diameter for an M6 flathead screw is 12.0mm. To ensure the screw sits 0.2mm sub-flush, our target chamfer diameter is 12.4mm:

Therefore, the spot drill must feed to a depth of Z-5.7mm relative to the top surface (Z0) to cut a perfect countersink for an M6 screw. If you have an aerospace 100-degree included angle countersink (50-degree half-angle) and are prepping a 1/4" flush screw (head diameter 0.477"), with a tool tip diameter of 0.050":

The programmer must command a depth of Z-0.179" to seat the aerospace fastener flush.

6. CNC Chamfer Tooling Considerations

Selecting the right chamfering tool depends on the material, production volume, and geometric constraints of the part. Using the wrong tool results in poor surface finish and rapid tool wear.

Spotted Drills vs. Chamfer Mills

Spotted drills (spot drills) are designed to pre-drill a centering dimple that prevents twist drills from walking during entry. Because they are ground with precise included angles (typically 90 degrees or 120 degrees), they are often used for dual-purpose operations: spotting a hole and chamfering its entry in a single tool pass.

While this is highly efficient for shallow hole patterns, spot drills are not optimized for lateral side milling (profiling along X and Y axes). They lack relief angles along the secondary cutting edges, leading to severe chatter and rapid tool wear if driven laterally. For profiling outer part boundaries or pocket edges, a dedicated **Chamfer Mill** with relieved side-cutting edges is mandatory.

Solid Carbide vs. Indexable Carbide Inserts

Modern machine shops choose between solid carbide chamfer mills and indexable insert systems:

• Solid Carbide Chamfer Mills: Excellent for high-speed machining (HSM) of small-to-medium parts, medical devices, and intricate profiles. They maintain high concentricity, can feature up to 6 or 8 flutes for high feed rates, and are available in micro-diameters (down to 1mm). However, they are expensive and must be replaced or reground when worn.
• Indexable Insert Chamfer Cutters: The premier choice for large chamfer sizes, weld preparations, and heavy steel fabrication. When a cutting edge is worn, the operator simply indexes the carbide insert to a fresh corner, minimizing tooling down-time and cost-per-edge. They are larger in diameter, which restricts their use in tight internal pockets or small-diameter bores.

Chip Thinning on Chamfer Cutters

When using a 45-degree chamfer mill, the cutter engages the material at an angle. This introduces the phenomenon of chip thinning. Because the cutting edge is angled at 45 degrees, the actual chip thickness (h_x) is significantly thinner than the physical feed per tooth (f_z) programmed in the control system. The mathematical relationship is:

To achieve the target chip thickness required to prevent tool rubbing and localized hardening, you must increase the programmed feed rate by approximately 1.4 times (1 / 0.7071). For example, if the tool manufacturer recommends a chip load of 0.05mm per tooth, the programmed feed per tooth should be: `0.05 / 0.7071 = 0.07mm per tooth`. If you fail to adjust for chip thinning, the tool will rub against the material, leading to thermal expansion and rapid tip wear.

7. Real G-Code Examples for Chamfering

To bridge the gap between theory and shop floor application, let's explore three fully commented G-code programs. These examples are written for a Fanuc or Haas control system running metric units.

Example 1: Linear Contour Chamfering (G17, G41, G01)

This program cuts a 1.0mm 45-degree chamfer around the outer edge of a 100mm x 100mm square block. The workpiece origin (G54) is located at the bottom-left corner of the block. A 12mm nominal diameter 90-degree solid carbide chamfer mill is used, with a tool tip offset of 2.0mm. The Z-depth is set to Z-3.0mm. The toolpath utilizes a perpendicular lead-in and lead-out to engage tool compensation safely in open air.

%
O1003 (2D CONTOUR OUTER CHAMFER)
(TOOL: 12mm NOMINAL 90-DEG CHAMFER MILL)
(WCS: G54 X0=BOTTOM LEFT, Y0=BOTTOM LEFT)
(SAFETY PLANES: Z50.0, R-PLANE: Z2.0)

G21 G90 G40 G80 G17      (Metric units, absolute coordinates, cancel comp, active G17 XY)
T01 M06                  (Load Chamfer Mill Tool 1)
S6500 M03                (Spindle ON, clockwise at 6500 RPM based on effective diameter)
G54                      (Activate Work Coordinate System 54)
G00 X-15.0 Y-15.0        (Rapid to safe start coordinate in open air)
G43 H01 Z50.0 M08        (Apply Tool Length Offset 1, rapid to Z50, coolant ON)
G00 Z2.0                 (Rapid down to R-plane Z2.0)
G01 Z-3.0 F500           (Feed to cutting depth Z-3.0mm: 1mm chamfer + 2mm tip offset)

(--- LEAD-IN MOVEMENT WITH G41 COMP ---)
G01 G41 D01 X0.0 Y-15.0 F800  (Activate Left Tool Compensation, approach part edge Y0)
G01 Y0.0                 (Engage part corner)

(--- PROFILE PATH CLIMB MILLING ---)
G01 X100.0               (Cut along bottom edge to bottom-right corner)
G01 Y100.0               (Cut along right edge to top-right corner)
G01 X0.0                 (Cut along top edge to top-left corner)
G01 Y0.0                 (Cut along left edge to bottom-left corner)

(--- LEAD-OUT MOVEMENT WITH G40 COMP CANCEL ---)
G01 X-15.0               (Feed past corner to ensure clean cutoff)
G01 G40 Y-15.0           (Deactivate tool compensation safely in open air)
G00 Z50.0 M09            (Rapid retract to Z50.0, coolant OFF)
M05                      (Spindle Stop)
G28 G91 Z0.0             (Return Z-axis to machine zero)
G28 G91 X0.0 Y0.0        (Return X and Y to machine zero)
M30                      (End of Program)
%

Example 2: Circular Pocket Edge ID Chamfer (G03, I/J Vectors)

This program chamfers the inner edge of a circular pocket with a finished diameter of 50.0mm. The pocket center is located at G54 X0 Y0. The desired chamfer width is 0.5mm. Using the same 12mm cutter with a 2.0mm tip offset, the cutting depth is Z-2.5mm. The tool plunges in the exact center of the pocket, approaches the wall along a linear lead-in, executes a full 360-degree G03 counter-clockwise arc (climb milling), and returns to the center before retracting.

%
O1004 (CIRCULAR POCKET ID CHAMFER)
(POCKET CENTER: X0 Y0, finished DIA: 50.0mm)
(CHAMFER WIDTH: 0.5mm, TIP OFFSET: 2.0mm)
(TOOL: 12mm 90-DEG CHAMFER MILL)

G21 G90 G40 G80 G17
T01 M06
S7000 M03                (Spindle ON at 7000 RPM)
G54
G00 X0.0 Y0.0            (Rapid to the exact center of the pocket in open air)
G43 H01 Z50.0 M08
G00 Z2.0
G01 Z-2.5 F400           (Feed to depth: 0.5mm width + 2.0mm tip offset)

(--- LEAD-IN TO COMPENSATED PATH ---)
G01 G41 D01 X25.0 Y0.0 F600   (Activate compensation, linear approach to pocket radius)

(--- FULL 360-DEGREE CIRCULAR INTERPOLATION ---)
G03 X25.0 Y0.0 I-25.0 J0.0    (Execute full CCW circle back to start, center is X0 Y0)

(--- LEAD-OUT AND RETRACT ---)
G01 G40 X0.0 Y0.0             (Cancel tool compensation, return tool to pocket center)
G00 Z50.0 M09                 (Rapid retract, coolant OFF)
M05
G28 G91 Z0.0
M30
%

Example 3: Parametric Fanuc Macro B Circular Chamfer Program

This advanced program replicates the underlying logic of the SHADER7 Circular Chamfer Macro Generator. It utilizes parametric Macro B variables to machine a conical circular chamfer in a series of Z-step-down increments. This is highly useful for cutting large bevels in tough materials like titanium or stainless steel, where executing the chamfer in a single pass would overload the tool tip.

The program utilizes the center coordinates X0 Y0, a start depth of Z0, a final depth of Z-5.0mm, a base diameter of 50.0mm, and a 45-degree angle. It steps down Z in 0.5mm increments, automatically calculating the expanding radius offset at each step to maintain constant tool edge contact.

%
O6999 (CONICAL CIRCULAR CHAMFER STEP-DOWN MACRO)
(CENTER WORK COORDINATE: X0 Y0)
(TOOL OFFSET REGISTER D11 MUST HOLD THE ACTIVE RADIUS VALUE OF THE CUTTER)

G40 G00 G90 G54 G17      (Reset WCS and plane)
T02 M06                  (Load Chamfer Tool 2)
S4500 M03                (Spindle ON at 4500 RPM)
G43 H02 Z50.0 M08        (Tool length compensation, coolant ON)

(--- PARAMETER VARIABLES ---)
#1=0.0                   (CURRENT Z-DEPTH: STARTS AT SURFACE Z0)
#2=-5.0                  (FINAL DESIRED Z-DEPTH OF BEVEL BASE)
#3=50.0                  (BASE DIA AT FINAL Z-DEPTH)
#4=45.0                  (CHAMFER BEVEL ANGLE - TYPICALLY 45)
#6=0.5                   (Z-STEP DOWN INCREMENT PER CONCENTRIC PASS)
#7=11.0                  (TOOL OFFSET REGISTER REGISTER NUMBER - D11)

G90 G00 X0.0 Y0.0        (Rapid to circular pocket center)
G00 Z[#1+2.0]            (Rapid to 2mm safety clearance plane above part)

(--- STEP-DOWN CONCENTRIC LOOP ---)
WHILE [#1 GT #2] DO1     (While active Z is greater than final Z, loop)
#1=#1-#6                 (Calculate next pass Z depth)
IF [#1 LT #2] THEN #1=#2 (Do not allow Z to plunge deeper than final target depth)

#9=ABS[#1-#2]            (Distance from current Z to final base depth)
#5=[[#3/2]+[#9*TAN[#4]]] (Calculate active offset cutting radius at this depth)

G90 G01 Z#1 F300         (Linear feed descent to current Z plane)
G91 G01 G41 D#7 X#5 F500 (Incremental lead-in to active radius, activate compensation)
G03 X0.0 Y0.0 I-#5 J0.0  (Execute full 360-degree CCW circular toolpath)
G01 G40 X-#5 F800        (Incremental lead-out, cancel tool compensation to center)
END1                     (End Loop)

(--- SAFETY RETRACT ---)
G90 G00 Z200.0 M09       (Rapid Z to safe height, coolant OFF)
M05                      (Spindle Stop)
M30                      (End of Program)
%

8. Troubleshooting Chamfering Faults & Shop-Floor Workflows

Machining high-quality chamfers requires careful attention to detail. Minor variations in machine alignment, spindle wear, or toolpath engagement can lead to distinct geometric errors or poor surface finishes on the component.

Diagnostic Table: Shop-Floor Faults, Root Causes, and Solutions

When a chamfer fails inspection, utilize this table to diagnose the mechanical issue and implement a corrective action:

Shop-Floor SOP Validation Workflow

Before executing a newly programmed chamfer cycle on your CNC machining center, verify that your setup complies with this actionable shop-floor checklist:

1. Dry Run in Air (Z-Offset): Shift the coordinate system Z-datum (G54 Z) upward by 50.0mm. Run the program with the spindle running. Verify visually that all tool-change operations, approaches, lead-ins, contour paths, and compensation cancellations behave correctly without interfering with fixtures.
2. Single Block Mode Verification: Activate Single Block mode on the CNC controller interface. Advance through each block of the lead-in move manually, checking the distance-to-go screen to ensure the tool is not moving toward a crash.
3. Execute on a Test Piece (MDF, Wax, or Scrap Metal): Machine the chamfer cycle on a soft plastic or wood block of identical dimensions to check the exact width and coordinate alignments visually.
4. Verify Chamfer Geometry under Magnification: Measure the machined edge using a pocket comparator or a go/no-go pin gage to ensure the bevel is correct before running the production block.

9. Frequently Asked Questions (FAQ)

10. Conclusion & Actionable Shop-Floor Checklist

CNC chamfering is an essential operation that directly impacts the safety, functionality, and longevity of precision-machined components. By shifting edge preparation from manual hand tools to in-cycle CNC toolpaths, manufacturers achieve micron-level uniformity, eliminate secondary deburring operations, and prevent scrapped parts. Achieving a perfect, chatter-free chamfer requires a firm grasp of right-triangle trigonometry, effective diameter calculations, tool radius compensation vectors, and material-specific cutting parameters.

Before launching a newly programmed chamfer cycle on your CNC machining center, verify that your setup complies with this actionable shop-floor checklist:

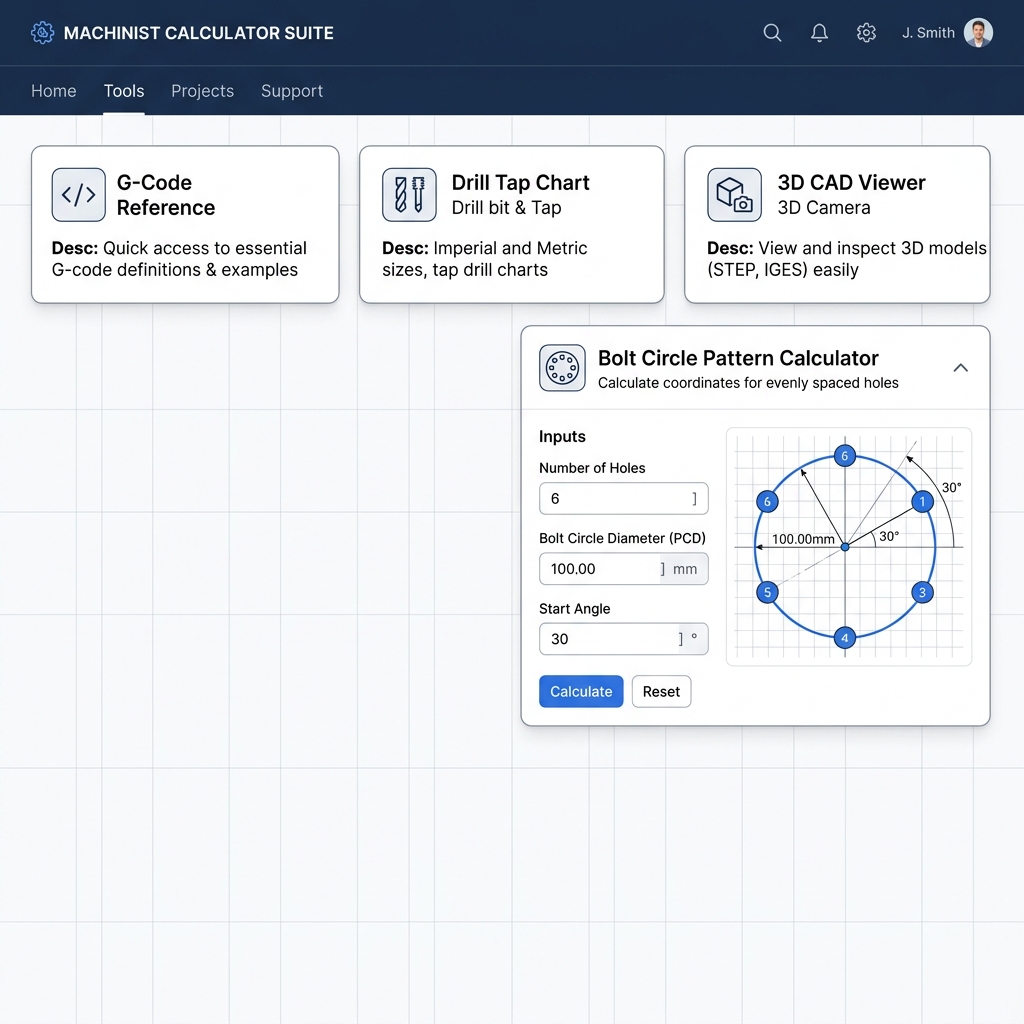

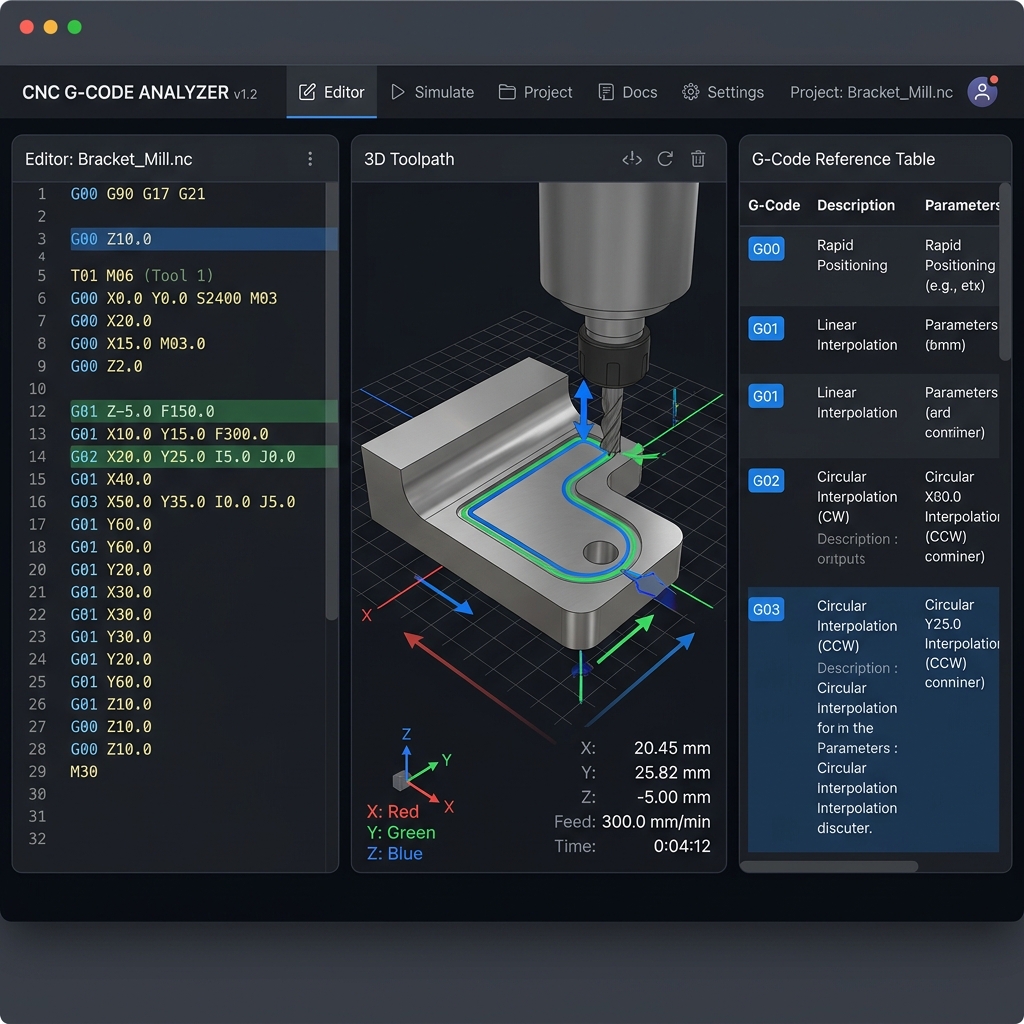

To eliminate manual calculation errors and instantly generate production-ready code, utilize the SHADER7 suite of CNC tools. Our parametric generators automatically calculate exact Z-depths, effective cutting diameters, and compensation offsets, outputting clean, formatted Fanuc-compatible G-code at the touch of a button. Save time, eliminate scrap, and elevate your programming standard.
